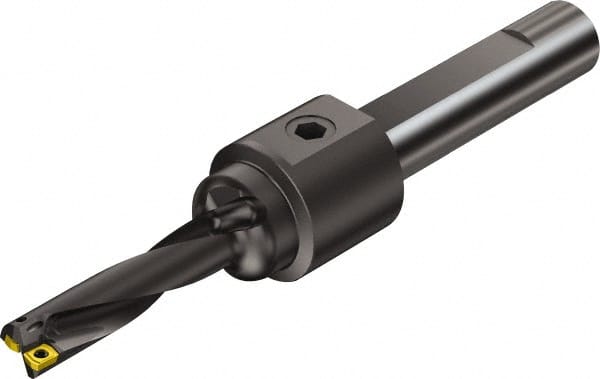

Sandvik Coromant - 4.881" Max Drill Depth, 4xD, 1.187" Diam, Indexable Insert Drill - 2 Inserts, 1-1/4" Shank Diam, Flange Shank
Item #: 49333669
Brand: Sandvik Coromant
Model #: 5723341
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (Decimal Inch) | 1.1870 |
| Maximum Drill Depth (Decimal Inch) | 4.8810 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.2740 |
| Overall Length/Projection (Decimal Inch) | 10.0350 |
| Insert Compatibility | 880-060406H-C-GM; 880-0604W06H-P-GM |
| Flute Length (Decimal Inch) | 4.7480 |
| Body Length (Decimal Inch) | 7.0132 |
| Shank Length (Decimal Inch) | 3.0218 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 1.10 |
