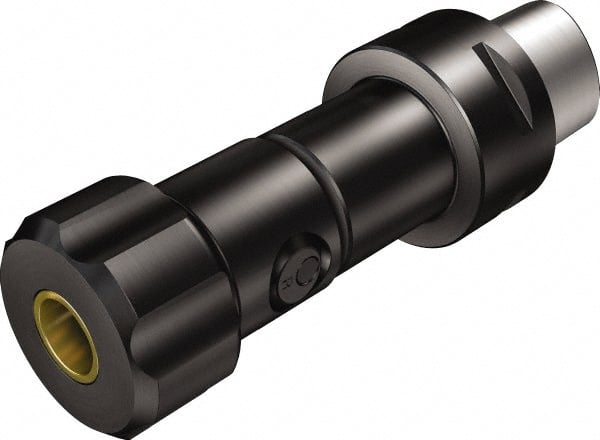

Sandvik Coromant - 119mm Max Drill Depth, 4xD, 29mm Diam, Indexable Insert Drill - 2 Inserts, C5 Modular Connection Shank
Item #: 49333867
Brand: Sandvik Coromant
Model #: 5765655
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 29.00 |
| Drill Diameter (Decimal Inch) | 1.1417 |
| Maximum Drill Depth (mm) | 119.00 |
| Maximum Drill Depth (Decimal Inch) | 4.6850 |
| Shank Type | Modular Connection |
| Modular Connection Size | C5 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.1417 |
| Maximum Drill Diameter (mm) | 30.00 |
| Overall Length/Projection (mm) | 191.00 |
| Overall Length/Projection (Decimal Inch) | 7.5197 |
| Insert Compatibility | 880-050305H-C-GM; 880-0503W05H-P-GM |
| Flute Length (mm) | 116.00 |
| Flute Length (Decimal Inch) | 4.5669 |
| Body Length (Decimal Inch) | 6.3185 |
| Body Length (mm) | 160.49 |
| Shank Length (mm) | 30.51 |
| Shank Length (Decimal Inch) | 1.2013 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.50 |
