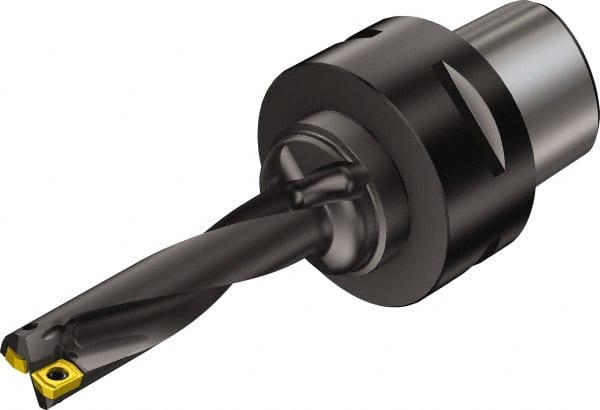

Sandvik Coromant - 53mm Max Drill Depth, 4xD, 12.5mm Diam, Indexable Insert Drill - 2 Inserts, C4 Modular Connection Shank
Item #: 49333925
Brand: Sandvik Coromant
Model #: 5765260
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 12.50 |
| Drill Diameter (Decimal Inch) | 0.4921 |
| Maximum Drill Depth (mm) | 53.00 |
| Maximum Drill Depth (Decimal Inch) | 2.0866 |
| Shank Type | Modular Connection |
| Modular Connection Size | C4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.4921 |
| Maximum Drill Diameter (mm) | 13.00 |
| Overall Length/Projection (mm) | 110.00 |
| Overall Length/Projection (Decimal Inch) | 4.3307 |
| Insert Compatibility | 880-010203H-C-GR; 880-0102W04-P-GR |
| Flute Length (mm) | 50.00 |
| Flute Length (Decimal Inch) | 1.9685 |
| Body Length (Decimal Inch) | 3.3709 |
| Body Length (mm) | 85.62 |
| Shank Length (mm) | 24.38 |
| Shank Length (Decimal Inch) | 0.9600 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.25 |
