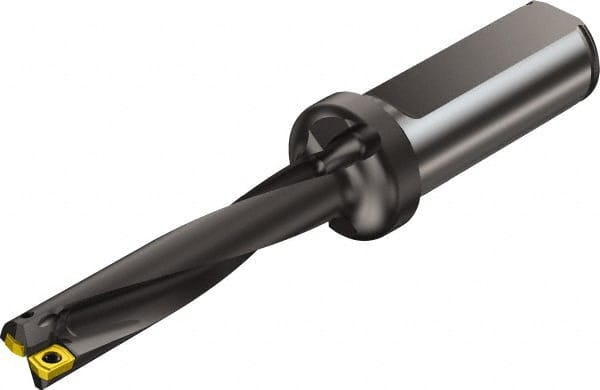

Sandvik Coromant - 215mm Max Drill Depth, 5xD, 42mm Diam, Indexable Insert Drill - 2 Inserts, 50mm Shank Diam, Flange Shank
Item #: 49334014
Brand: Sandvik Coromant
Model #: 5765496
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 42.00 |
| Drill Diameter (Decimal Inch) | 1.6535 |
| Maximum Drill Depth (mm) | 215.00 |
| Maximum Drill Depth (Decimal Inch) | 8.4646 |
| Shank Type | Flange |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.9685 |
| Maximum Drill Diameter (mm) | 43.20 |
| Overall Length/Projection (mm) | 325.00 |
| Overall Length/Projection (Decimal Inch) | 12.7953 |
| Insert Compatibility | 880-070406H-C-GM; 880-0704W06H-P-GM |
| Flute Length (mm) | 210.00 |
| Flute Length (Decimal Inch) | 8.2677 |
| Body Length (Decimal Inch) | 9.6205 |
| Body Length (mm) | 244.36 |
| Shank Length (mm) | 80.00 |
| Shank Length (Decimal Inch) | 3.1496 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.63 |
