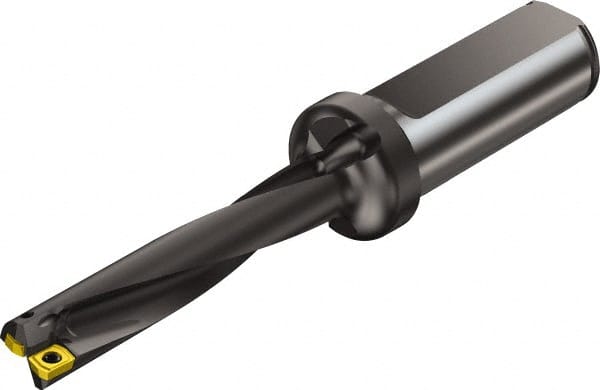

Sandvik Coromant - 220mm Max Drill Depth, 5xD, 43mm Diam, Indexable Insert Drill - 2 Inserts, 50mm Shank Diam, Flange Shank
Item #: 49334196
Brand: Sandvik Coromant
Model #: 5765463
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 43.00 |
| Drill Diameter (Decimal Inch) | 1.6929 |
| Maximum Drill Depth (mm) | 220.00 |
| Maximum Drill Depth (Decimal Inch) | 8.6614 |
| Shank Type | Flange |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.9685 |
| Maximum Drill Diameter (mm) | 44.00 |
| Overall Length/Projection (mm) | 331.00 |
| Overall Length/Projection (Decimal Inch) | 13.0315 |
| Insert Compatibility | 880-070406H-C-GM; 880-0704W06H-P-GM |
| Flute Length (mm) | 215.00 |
| Flute Length (Decimal Inch) | 8.4646 |
| Body Length (Decimal Inch) | 9.8563 |
| Body Length (mm) | 250.35 |
| Shank Length (mm) | 80.00 |
| Shank Length (Decimal Inch) | 3.1496 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.50 |
