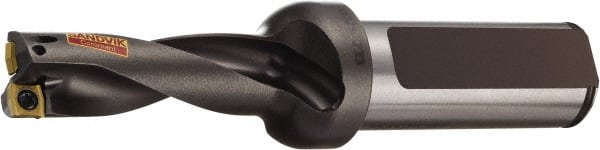

Sandvik Coromant - 2.126" Max Drill Depth, 3xD, 0.656" Diam, Indexable Insert Drill - 2 Inserts, 3/4" Shank Diam, Flange Shank
Item #: 49334212
Brand: Sandvik Coromant
Model #: 5962382
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (Decimal Inch) | 0.6560 |
| Maximum Drill Depth (Decimal Inch) | 2.1260 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.7020 |
| Overall Length/Projection (Decimal Inch) | 4.6845 |
| Insert Compatibility | 881-02 02 04M-C-GM1; 881-02 02 04M-P-GM1 |
| Flute Length (Decimal Inch) | 1.9680 |
| Body Length (Decimal Inch) | 2.7053 |
| Shank Length (Decimal Inch) | 1.9792 |
| Series | CoroDrill 881 |
| Radial Adjustment (-mm) | 0.58 |
