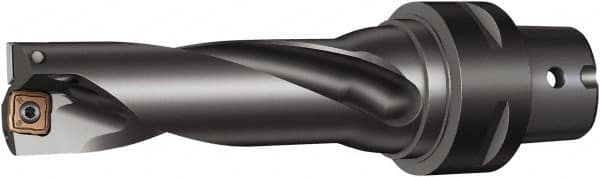

Sandvik Coromant - 4.881" Max Drill Depth, 4xD, 1.187" Diam, Indexable Insert Drill - 2 Inserts, C4 Modular Connection Shank
Item #: 49334329
Brand: Sandvik Coromant
Model #: 6328006
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (Decimal Inch) | 1.1870 |
| Maximum Drill Depth (Decimal Inch) | 4.8810 |
| Shank Type | Modular Connection |
| Modular Connection Size | C4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.1870 |
| Overall Length/Projection (Decimal Inch) | 7.5069 |
| Insert Compatibility | 880-060406H-C-GM; 880-0604W06H-P-GM |
| Flute Length (Decimal Inch) | 4.7480 |
| Body Length (Decimal Inch) | 6.5402 |
| Shank Length (mm) | 24.55 |
| Shank Length (Decimal Inch) | 0.9667 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 1.10 |
