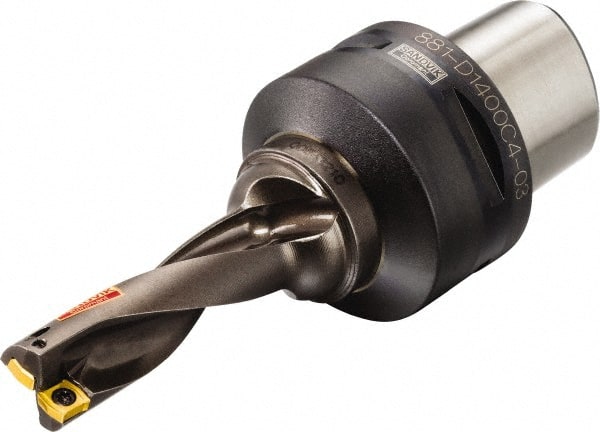

Sandvik Coromant - 64mm Max Drill Depth, 3xD, 20mm Diam, Indexable Insert Drill - 2 Inserts, C4 Modular Connection Shank
Item #: 49334477
Brand: Sandvik Coromant
Model #: 5962325
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 20.00 |
| Drill Diameter (Decimal Inch) | 0.7874 |
| Maximum Drill Depth (mm) | 64.00 |
| Maximum Drill Depth (Decimal Inch) | 2.5197 |
| Shank Type | Modular Connection |
| Modular Connection Size | C4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.7874 |
| Maximum Drill Diameter (mm) | 21.50 |
| Overall Length/Projection (mm) | 135.00 |
| Overall Length/Projection (Decimal Inch) | 5.3150 |
| Insert Compatibility | 881-03 03 08M-C-GM1; 881-03 03 08M-P-GM1 |
| Flute Length (mm) | 60.00 |
| Flute Length (Decimal Inch) | 2.3622 |
| Body Length (Decimal Inch) | 4.3417 |
| Body Length (mm) | 110.28 |
| Shank Length (mm) | 24.72 |
| Shank Length (Decimal Inch) | 0.9734 |
| Series | CoroDrill 881 |
| Radial Adjustment (-mm) | 0.75 |
