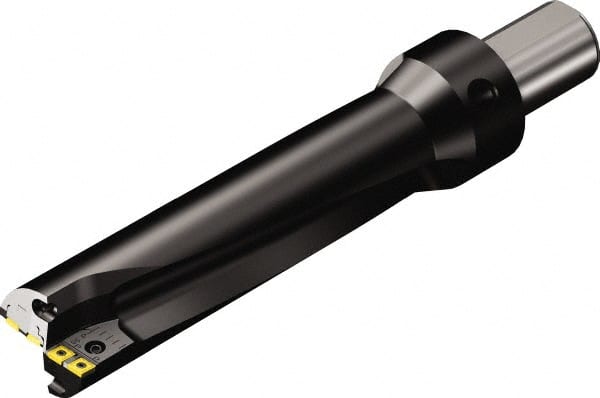

Sandvik Coromant - 8.3768" Max Drill Depth, 3.08955xD, 67mm Diam, Indexable Insert Drill - 2 Inserts, 2" Shank Diam, Flange Shank
Item #: 49334485
Brand: Sandvik Coromant
Model #: 6660424
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 67.00 |
| Drill Diameter (Decimal Inch) | 2.6378 |
| Maximum Drill Depth (Decimal Inch) | 8.3768 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Shank Diameter (Inch) | 2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3.08955xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 2.4800 |
| Overall Length/Projection (Decimal Inch) | 14.0551 |
| Insert Compatibility | 880-060406H-C-GM; 880-0604W06H-P-GM |
| Flute Length (Decimal Inch) | 8.1496 |
| Body Length (Decimal Inch) | 10.8543 |
| Shank Length (Decimal Inch) | 3.2008 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.00 |
