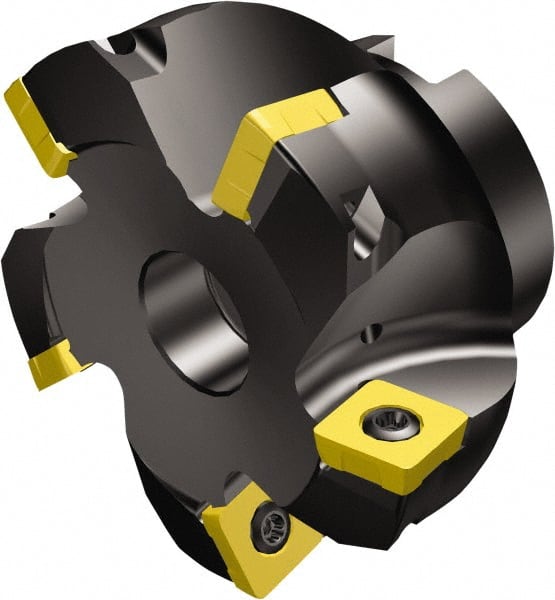

Sandvik Coromant - 5 Inserts, 1.9449" Cut Diam, 3/4" Arbor Diam, 0.0472" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 10° Lead Angle, 1.969" High, R210-090412M Insert Compatibility, Through Coolant, Series CoroMill 210
Item #: 49335557
Brand: Sandvik Coromant
Model #: 5739847
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.9449 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 10 |
| Overall Height (Decimal Inch) | 1.9690 |
| Insert Compatibility | R210-090412M |
| Series | CoroMill 210 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.0472 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | RA210..Rxx |
| Keyway Width (Decimal Inch) | 0.3209 |
| Maximum Body Diameter (Decimal Inch) | 2.3803 |
| Maximum RPM | 21700 |
| ISO Number | RA210063R1909M |
| Complete Insert Compatibility | R210-090412M |
| Toolholder Material | Steel |
