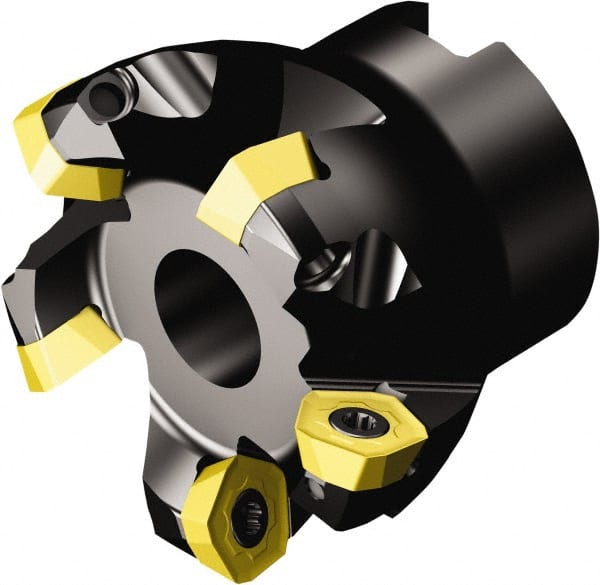

Sandvik Coromant - 2.4213" Cut Diam, 1" Arbor Hole, 0.0787" Max Depth of Cut, 19° Indexable Chamfer & Angle Face Mill - 6 Inserts, 419R-1405 Insert, Right Hand Cut, Through Coolant, Series CoroMill 419
Item #: 49335649
Brand: Sandvik Coromant
Model #: 6289912
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.4213 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 19 |
| Overall Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | 419R-1405 |
| Series | CoroMill 419 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Number of Cutter Inserts | 6 |
| Cutter Style | A419..Rxx |
| Keyway Width (Decimal Inch) | 0.3839 |
| Maximum RPM | 13400 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | 419R-1405 |
| Toolholder Material | Steel |
