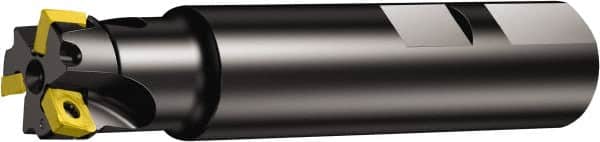

Sandvik Coromant - 32mm Cut Diam, 5.5mm Max Depth of Cut, 25mm Shank Diam, 98mm OAL, Indexable Square Shoulder End Mill - 490R-08T308M-PL Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series CoroMill 490
Item #: 49335680
Brand: Sandvik Coromant
Model #: 5762104
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9844 |
| Overall Length/Projection (mm) | 98.00 |
| Overall Length/Projection (Decimal Inch) | 3.8583 |
| Lead Angle | 90 |
| Series | CoroMill 490 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | 490-032B25-08M |
| Number of Flutes | 4 |
| Head Length (Decimal Inch) | 1.5748 |
| Weldon Flat | Yes |
| Insert Compatibility | 490R-08T308M-PL |
| Shank Length (Decimal Inch) | 2.2835 |
| Maximum RPM | 33900 |
| Toolholder Material | Steel |
