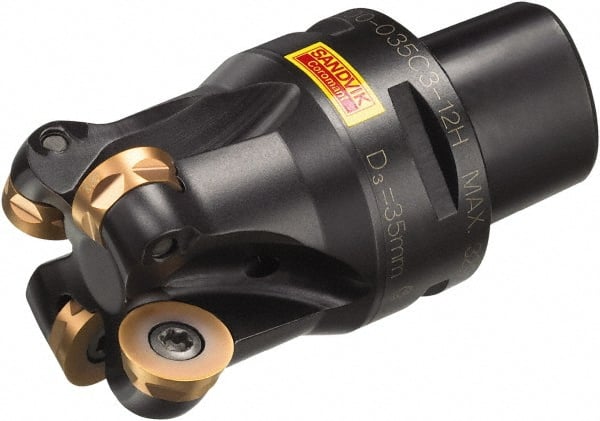

Sandvik Coromant - 5 Inserts, 1.5748" Cutter Diam, 0.2362" Max Depth of Cut, Indexable High-Feed Face Mill - 3.1496" High, R300..Cx Toolholder, R300-1240.. Inserts, Series CoroMill 300
Item #: 49336266
Brand: Sandvik Coromant
Model #: 5744370
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Shank Diameter (Decimal Inch) | 50.0000 |
| Overall Height (Decimal Inch) | 3.1496 |
| Series | CoroMill 300 |
| Cutter Style | R300..Cx |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | R300-1240.. |
| Cutting Direction | Right Hand |
| Maximum RPM | 24000 |
| Maximum Body Diameter (Decimal Inch) | 1.7835 |
| Through Coolant | Yes |
| Complete Insert Compatibility | R300-1240.. |
| Manufacturers Catalog Number | 5744370 |
