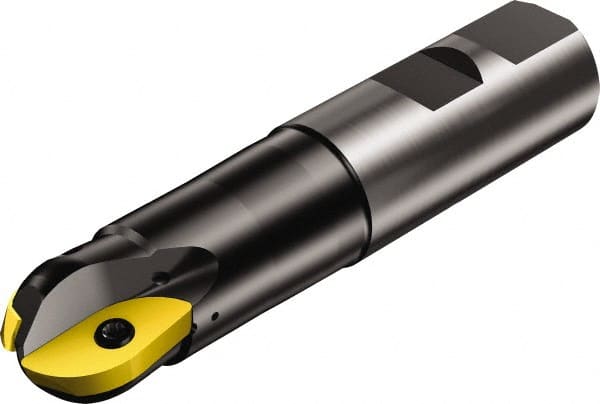

Sandvik Coromant - 20mm Cut Diam, 17.9mm Max Depth of Cut, 25mm Shank Diam, 107mm OAL, Indexable Ball Nose End Mill - 33mm Head Length, Weldon Flat Shank, R216.. B Toolholder, R216-20 T3 Insert
Item #: 49336274
Brand: Sandvik Coromant
Model #: 5743666
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (mm) | 17.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.7047 |
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | R216-20 T3 |
| Toolholder Style | R216.. B |
| Series | CoroMill 216 |
| Overall Length (mm) | 107.00 |
| Overall Length (Decimal Inch) | 4.2126 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Number of Flutes | 2 |
| Head Length (mm) | 33.00 |
| Head Length (Decimal Inch) | 1.2992 |
| Number of Side Inserts Used on Toolholder | 2 |
| Neck Diameter (Decimal Inch) | 0.9843 |
| Maximum RPM | 24000 |
| Projection (mm) | 51.00 |
| Projection (Decimal Inch) | 2.0079 |
