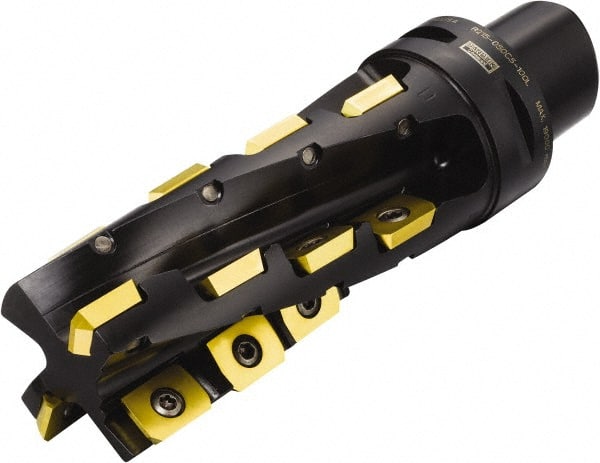

Sandvik Coromant - 2 Inserts, 50mm Cut Diam, 50mm Arbor Diam, 100mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 141.5mm High, LDHT 19 04 00 & LEHT 18 04 16 Insert Compatibility, Series U-Max
Item #: 49336555
Brand: Sandvik Coromant
Model #: 5743014
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 50.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.9685 |
| Lead Angle | 90 |
| Overall Height (mm) | 141.50 |
| Overall Height (Decimal Inch) | 5.5709 |
| Insert Compatibility | LDHT 19 04 00; LEHT 18 04 16 |
| Series | U-Max |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 100.00 |
| Maximum Depth of Cut (Decimal Inch) | 3.9370 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | R215 |
| Maximum RPM | 7900 |
| Cutting Edge Length (Decimal Inch) | 3.9370 |
| ISO Number | R215050C5100L |
| Complete Insert Compatibility | LDHT 19 04 00; LEHT 18 04 16 |
| Toolholder Material | Steel |
