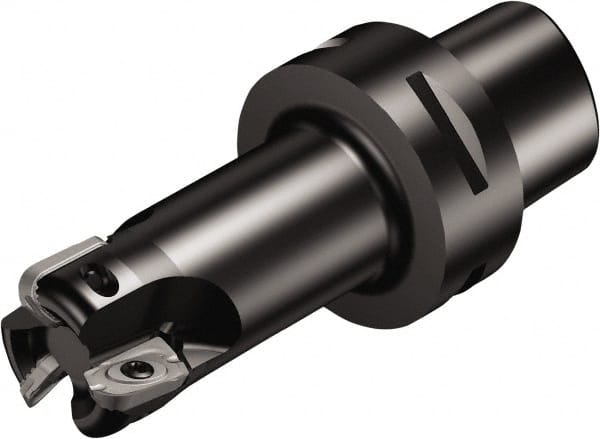

Sandvik Coromant - 3 Inserts, 2" Cut Diam, 2.4803" Arbor Diam, 0.7087" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 4" High, R790-2205.. Insert Compatibility, Through Coolant, Series CoroMill 790
Item #: 49336563
Brand: Sandvik Coromant
Model #: 5740368
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Decimal Inch) | 2.4803 |
| Lead Angle | 90 |
| Overall Height (Inch) | 4 |
| Overall Height (Decimal Inch) | 4.0000 |
| Insert Compatibility | R790-2205.. |
| Series | CoroMill 790 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | RA790 |
| Maximum RPM | 20000 |
| Cutting Edge Length (Decimal Inch) | 0.7087 |
| ISO Number | RA790050C6S222M |
| Complete Insert Compatibility | R790-2205.. |
| Toolholder Material | Steel |
