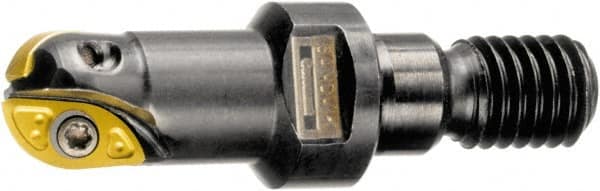

Sandvik Coromant - 20mm Cut Diam, 17.9mm Max Depth of Cut, 17.8mm Shank Diam, 49.5mm OAL, Indexable Ball Nose End Mill - 25mm Head Length, M10 Modular Connection, R216.. T Toolholder, R216-20 T3 Insert
Item #: 49336712
Brand: Sandvik Coromant
Model #: 5743672
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (mm) | 17.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.7047 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M10 |
| Shank Diameter (mm) | 17.80 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | R216-20 T3 |
| Toolholder Style | R216.. T |
| Series | CoroMill 216 |
| Overall Length (mm) | 49.50 |
| Overall Length (Decimal Inch) | 1.9488 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Number of Flutes | 2 |
| Head Length (mm) | 25.00 |
| Head Length (Decimal Inch) | 0.9843 |
| Number of Side Inserts Used on Toolholder | 2 |
| Neck Diameter (Decimal Inch) | 0.7008 |
| Maximum RPM | 12700 |
| Projection (mm) | 30.00 |
| Projection (Decimal Inch) | 1.1811 |
