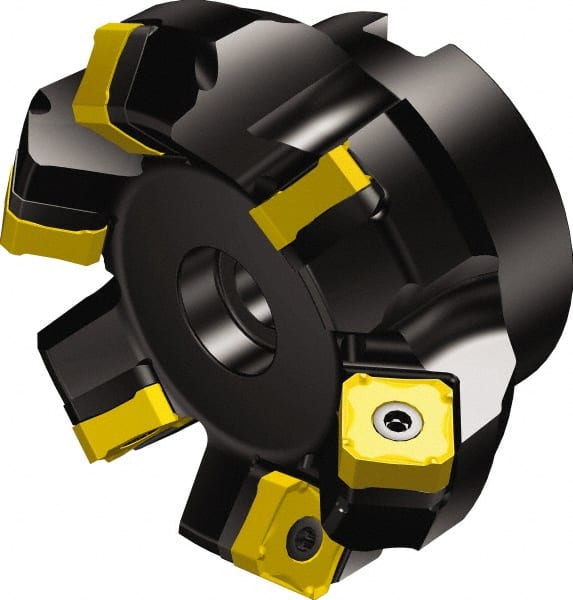

Sandvik Coromant - 2" Cut Diam, 3/4" Arbor Hole, 0.2362" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 3 Inserts, 345R-13T5 Insert, Right Hand Cut, Through Coolant, Series CoroMill 345
Item #: 49336761
Brand: Sandvik Coromant
Model #: 5722681
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.7717 |
| Insert Compatibility | 345R-13T5 |
| Series | CoroMill 345 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Number of Cutter Inserts | 3 |
| Cutter Style | A345..Rxx |
| Keyway Width (Decimal Inch) | 0.3209 |
| Maximum RPM | 17300 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | 345R-13T5 |
| Toolholder Material | Steel |
