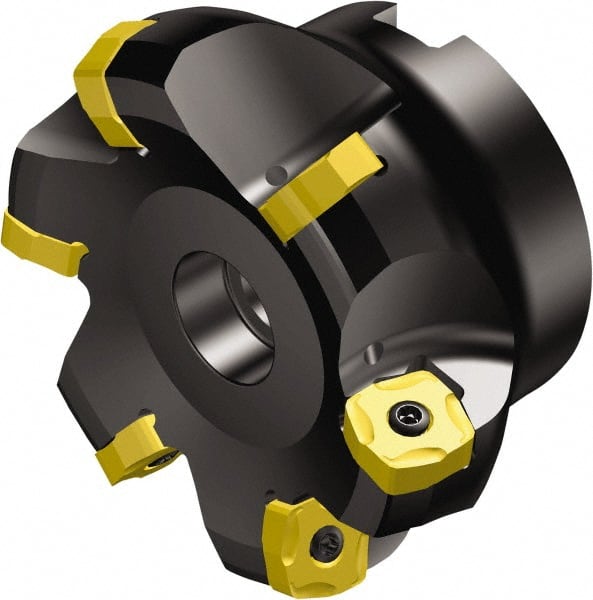

Sandvik Coromant - 80mm Cut Diam, 1" Arbor Hole, 6mm Max Depth of Cut, 65° Indexable Chamfer & Angle Face Mill - 8 Inserts, R365-1505ZNE Insert, Right Hand Cut, Through Coolant, Series CoroMill 365
Item #: 49337116
Brand: Sandvik Coromant
Model #: 5740302
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 65 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | R365-1505ZNE |
| Series | CoroMill 365 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Number of Cutter Inserts | 8 |
| Cutter Style | R/LA365..Jxx-S |
| Keyway Width (mm) | 9.75 |
| Keyway Width (Decimal Inch) | 0.3839 |
| Maximum RPM | 11500 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | R365-1505ZNE |
| Toolholder Material | Steel |
