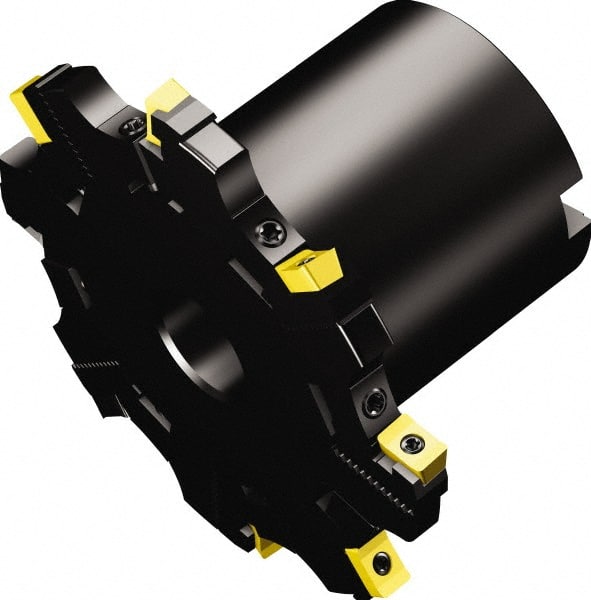

Sandvik Coromant - Arbor Hole Connection, 0.9252" Cutting Width, 2.071" Depth of Cut, 8" Cutter Diam, 1-1/2" Hole Diam, 12 Tooth Indexable Slotting Cutter - 1-1/2" Shank Diam, R331.32..Rxx Toolholder, R331.32..Rxx Insert, Right Hand Cutting Direction
Item #: 49337181
Brand: Sandvik Coromant
Model #: 6448856
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 23.50 |
| Cutting Width (Decimal Inch) | 0.9252 |
| Maximum Depth of Cut (Decimal Inch) | 2.0710 |
| Cutter Diameter (Decimal Inch) | 8.0000 |
| Cutter Diameter (Inch) | 8 |
| Hole Diameter (Inch) | 1-1/2 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1 1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Teeth | 12 |
| Toolholder Style | R331.32..Rxx |
| Series | CoroMill 331 |
| Insert Style | R331.32..Rxx |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 8000 |
| Minimum Cutting Width (Decimal Inch) | 0.9252 |
| Maximum Cutting Width (Decimal Inch) | 1.0433 |
| Hub Diameter (Decimal Inch) | 3.7800 |
| Keyway Width (Decimal Inch) | 0.6331 |
| Keyway Width (mm) | 16.08 |
| Rake | Positive |
| Lead Angle | 90 |
| Maximum Body Diameter (Decimal Inch) | 8.0000 |
| Weldon Flat | No |
| Through Coolant | No |
| Manufacturers Catalog Number | 6448856 |
| Complete Insert Compatibility1 | N331.1A-14 |
| Overall Height (Decimal Inch) | 2.4800 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
