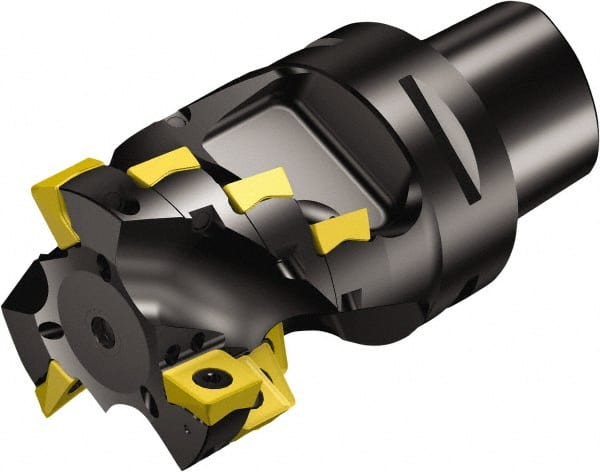

Sandvik Coromant - 3 Inserts, 44mm Cut Diam, 40mm Arbor Diam, 46mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 82mm High, 690-100508M-E-SL & 690-100510M-P-SL Insert Compatibility, Through Coolant, Series CoroMill 690
Item #: 49337298
Brand: Sandvik Coromant
Model #: 5765070
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 44.00 |
| Cutting Diameter (Decimal Inch) | 1.7323 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 90 |
| Overall Height (mm) | 82.00 |
| Overall Height (Decimal Inch) | 3.2284 |
| Insert Compatibility | 690-100508M-E-SL; 690-100510M-P-SL |
| Series | CoroMill 690 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 46.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.8110 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | 690 |
| Maximum RPM | 5000 |
| Cutting Edge Length (Decimal Inch) | 1.8110 |
| ISO Number | 690044C41046H |
| Complete Insert Compatibility | 690-100508M-E-SL; 690-100510M-P-SL |
| Toolholder Material | Steel |
