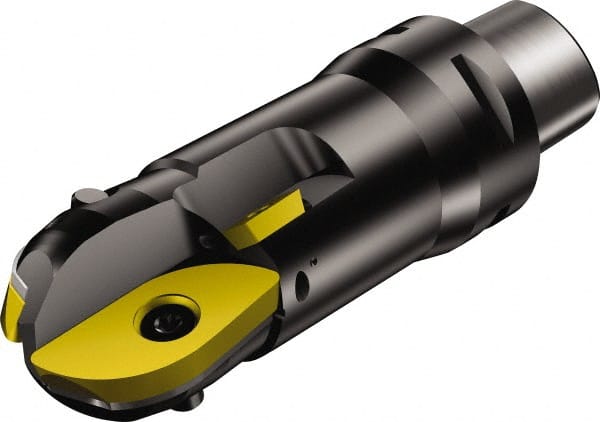

Sandvik Coromant - 1-1/2" Cut Diam, 1.299" Max Depth of Cut, 40mm Shank Diam, 4.0945" OAL, Indexable Ball Nose End Mill - 3.1496" Head Length, C4 Modular Connection, RA216.. Cx Toolholder, RA216-38 06 Insert
Item #: 49337595
Brand: Sandvik Coromant
Model #: 5738392
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1 1/2 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (Decimal Inch) | 1.2990 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | C4 |
| Shank Diameter (mm) | 40.00 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | RA216-38 06 |
| Toolholder Style | RA216.. Cx |
| Series | CoroMill 216 |
| Overall Length (Decimal Inch) | 4.0945 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 3.1496 |
| Number of Side Inserts Used on Toolholder | 2 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Maximum RPM | 8000 |
| Projection (Decimal Inch) | 3.1496 |
