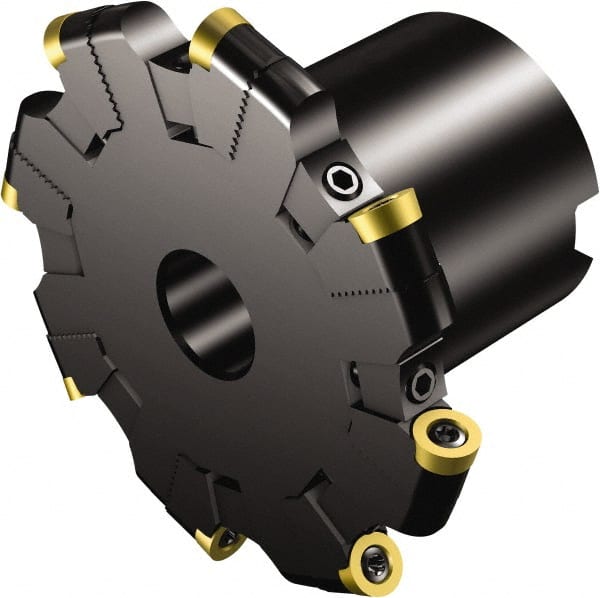

Sandvik Coromant - Arbor Hole Connection, 0.4724" Cutting Width, 2.0472" Depth of Cut, 202mm Cutter Diam, 1.5748" Hole Diam, 16 Tooth Indexable Slotting Cutter - R331.32 Toolholder, Qxx..MQ Insert, Right Hand Cutting Direction
Item #: 49337702
Brand: Sandvik Coromant
Model #: 5745089
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 12.00 |
| Cutting Width (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 52.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.0472 |
| Cutter Diameter (mm) | 202.00 |
| Cutter Diameter (Decimal Inch) | 7.9528 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 16 |
| Toolholder Style | R331.32 |
| Series | CoroMill 331 |
| Insert Style | Qxx..MQ |
| Staggered Tooth | No |
| Number of Cutter Inserts | 16 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 11000 |
| Hub Diameter (mm) | 96.00 |
| Hub Diameter (Decimal Inch) | 3.7795 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Keyway Width (mm) | 16.40 |
| Rake | Positive |
| Maximum Body Diameter (Decimal Inch) | 7.9528 |
| Maximum Body Diameter (mm) | 202 |
| Weldon Flat | No |
| Through Coolant | No |
| Manufacturers Catalog Number | 5745089 |
| Complete Insert Compatibility1 | RCKT 12 04 M0 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
