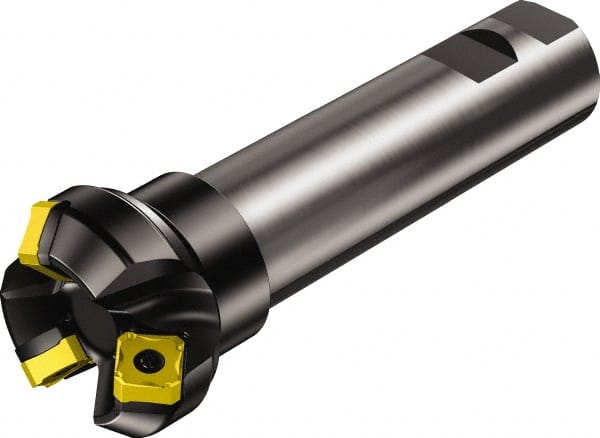

Sandvik Coromant - 2" Cut Diam, 0.2362" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 4 Inserts, 345R-13T5 Insert, Right Hand Cut, Through Coolant, Series CoroMill 345
Item #: 49337819
Brand: Sandvik Coromant
Model #: 5722589
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 5.8646 |
| Insert Compatibility | 345R-13T5 |
| Series | CoroMill 345 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Number of Cutter Inserts | 4 |
| Cutter Style | A345..Mxx |
| Maximum RPM | 17300 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | 345R-13T5 |
| Toolholder Material | Steel |
