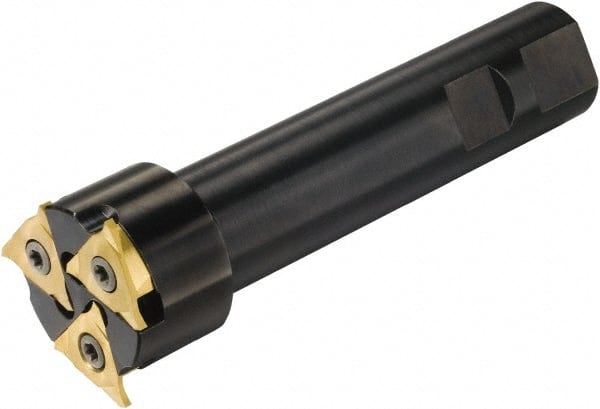

Sandvik Coromant - Shank Connection, 0.1575" Depth of Cut, 1.7323" Cutter Diam, 3 Tooth Indexable Slotting Cutter - 63/64" Shank Diam, 328-B Toolholder, 328R13-... Insert, Right Hand Cutting Direction
Item #: 49337827
Brand: Sandvik Coromant
Model #: 5758743
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shank |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Cutter Diameter (Decimal Inch) | 1.7323 |
| Shank Diameter (Decimal Inch) | 0.9844 |
| Number of Teeth | 3 |
| Toolholder Style | 328-B |
| Series | CoroMill 328 |
| Insert Style | 328R13-... |
| Staggered Tooth | No |
| Number of Cutter Inserts | 3 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 17100 |
| Maximum Body Diameter (Decimal Inch) | 2.7165 |
| Weldon Flat | Yes |
| Through Coolant | No |
| Manufacturers Catalog Number | 5758743 |
| Complete Insert Compatibility1 | 328R13-04 UN-TH; 328R13-06 UN-TH; 328R13-08 UN-TH; 328R13-10 UN-TH; 328R13-11 UN-TH; 328R13-110 45-GC; 328R13-12 UN-TH; 328R13-130 00-GM; 328R13-130 4509-GC; 328R13-130 45-GC; 328R13-14 UN-TH; 328R13-150 MM-TH; 328R13-150 VM-TH; 328R13-16 UN-TH; 328R13-16 |
| Overall Height (Decimal Inch) | 4.9213 |
