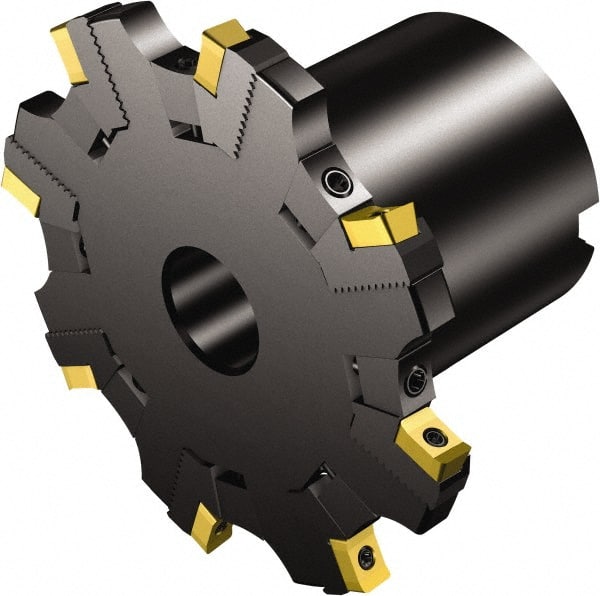

Sandvik Coromant - Arbor Hole Connection, 29.5mm Depth of Cut, 125mm Cutter Diam, 1.2598" Hole Diam, 8 Tooth Indexable Slotting Cutter - R331.52 Toolholder, Qxx..R Insert, Right Hand Cutting Direction
Item #: 49338601
Brand: Sandvik Coromant
Model #: 5745297
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Maximum Depth of Cut (mm) | 29.50 |
| Cutter Diameter (mm) | 125.00 |
| Cutter Diameter (Decimal Inch) | 4.9213 |
| Hole Diameter (mm) | 32.00 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Number of Teeth | 8 |
| Toolholder Style | R331.52 |
| Series | CoroMill 331 |
| Insert Style | Qxx..R |
| Staggered Tooth | No |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 12000 |
| Maximum Cutting Width (mm) | 10.60 |
| Hub Diameter (mm) | 64.00 |
| Hub Diameter (Decimal Inch) | 2.5197 |
| Keyway Width (Decimal Inch) | 0.5669 |
| Keyway Width (mm) | 14.40 |
| Rake | Positive |
| Lead Angle | 90 |
| Maximum Body Diameter (Decimal Inch) | 4.9213 |
| Maximum Body Diameter (mm) | 125 |
| Weldon Flat | No |
| Through Coolant | No |
| Manufacturers Catalog Number | 5745297 |
| Complete Insert Compatibility1 | N331.1A-11 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
