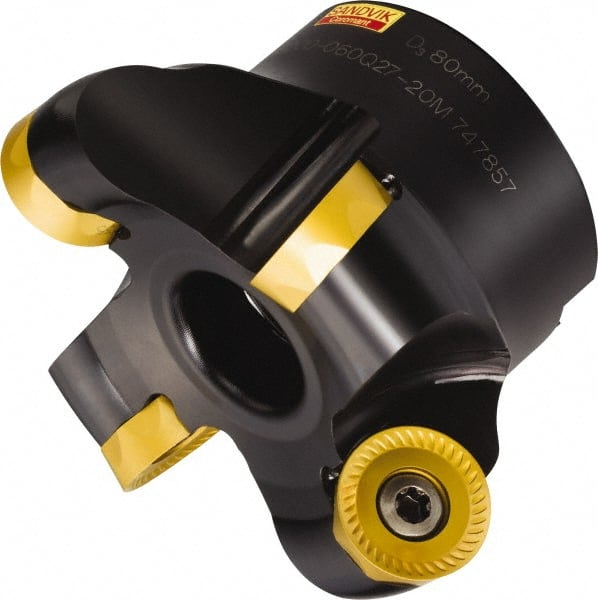

Sandvik Coromant - 6 Inserts, 4.1339" Cutter Diam, 0.3937" Max Depth of Cut, Indexable High-Feed Face Mill - 1.2598" Arbor Hole Diam, 0.5669" Keyway Width, 2.4803" High, R200..Qxx Toolholder, RCKT 20 06 M0 Inserts, Series CoroMill 200
Item #: 49338759
Brand: Sandvik Coromant
Model #: 5742371
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 4.1339 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Overall Height (Decimal Inch) | 2.4803 |
| Series | CoroMill 200 |
| Cutter Style | R200..Qxx |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | RCKT 20 06 M0 |
| Cutting Direction | Right Hand |
| Maximum RPM | 8000 |
| Maximum Body Diameter (Decimal Inch) | 4.9213 |
| Through Coolant | No |
| Complete Insert Compatibility | RCKT 20 06 M0 |
| Keyway Width (Decimal Inch) | 0.5669 |
| Manufacturers Catalog Number | 5742371 |
