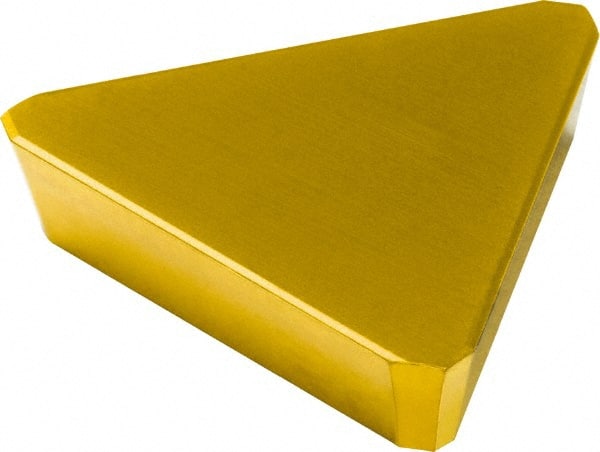

Sandvik Coromant - TPK43 Grade 2030 Carbide Milling Insert - TiAlN/TiN Finish, 4.76mm Thick, 12.7mm Inscribed Circle
Item #: 49339534
Brand: Sandvik Coromant
Model #: 5755099
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPK |
| Insert Size | 43 |
| Material | Carbide |
| Manufacturer's Grade | 2030 |
| Coating | TiAlN/TiN |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1874 |
| Relief Angle | 11.000 |
| Rake Angle | 0 |
| Rake | Neutral |
| Coating Process | PVD |
| Included Angle | 60 |
| Shape | Triangle |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 18.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Cutting Edge Style | ER Treated |
| Manufacturers Catalog Number | 5755099 |
| ISO Number | TPKN 22 04 PD R 2030 |
