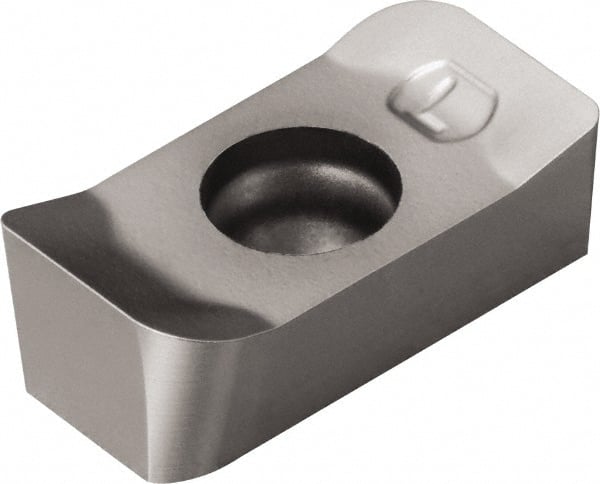

Sandvik Coromant - R331.1A054523 WL Grade 1040 Carbide Milling Insert - TiAlN2 Finish, 4.45mm Thick, 5mm Inscribed Circle, 2.3mm Corner Radius
Item #: 49340847
Brand: Sandvik Coromant
Model #: 5907133
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R331.1A |
| Insert Size | 054523 |
| Material | Carbide |
| Manufacturer's Grade | 1040 |
| Coating | TiAlN2 |
| Width (mm) | 9.50 |
| Width (Decimal Inch) | 0.3740 |
| Inscribed Circle (mm) | 5.00 |
| Inscribed Circle (Decimal Inch) | 0.1969 |
| Thickness (mm) | 4.45 |
| Thickness (Decimal Inch) | 0.1752 |
| Corner Radius (Decimal Inch) | 0.0906 |
| Corner Radius (mm) | 2.30 |
| Hole Diameter (mm) | 2.90 |
| Hole Diameter (Decimal Inch) | 0.1142 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | WL |
| Maximum Depth of Cut (mm) | 5.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.2244 |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | 5907133 |
| ISO Number | R331.1A-05 45 23H-WL1040 |
