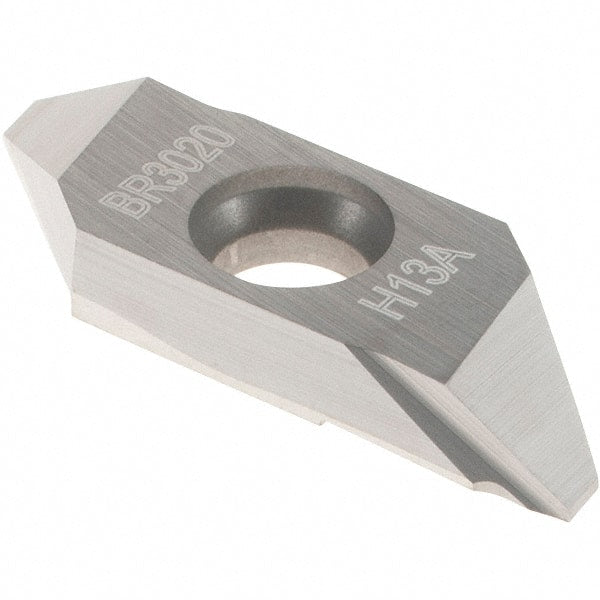

Sandvik Coromant - MABR3020 Grade H13A Carbide Turning Insert - Uncoated, Parallelogram, 1/8" Thick, 0.2mm Corner Radius
Item #: 49346125
Brand: Sandvik Coromant
Model #: 5733329
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MABR |
| Insert Size | 3020 |
| Material | Carbide |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1252 |
| Thickness (mm) | 3.18 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| ISO Number | MABR3020H13A |
| Relief Angle | 6 |
| Manufacturers Catalog Number | 5733329 |
| Primary Workpiece Material | K; N; S |
| Secondary Workpiece Material | K; N; S |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Series | CoroCut XS |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| Shape | Parallelogram |
