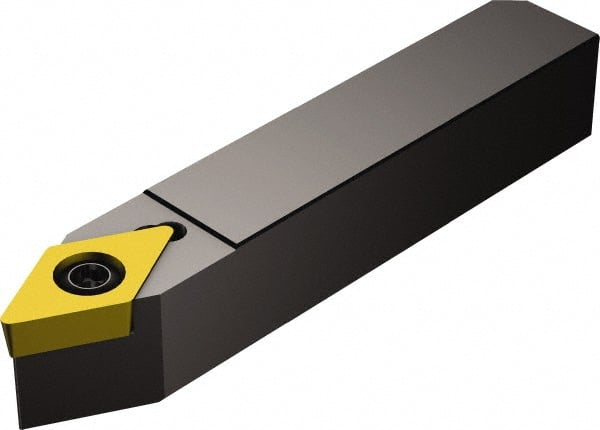

Sandvik Coromant - QS-SDNC, Neutral Cut, 27.50° Lead Angle, 16mm Shank Height x 16mm Shank Width, Neutral Rake Indexable Turning Toolholder - 70mm OAL, DCMT 11 T3 08 Insert Compatibility, Series CoroTurn 107
Item #: 49348576
Brand: Sandvik Coromant
Model #: 5739153
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | QS-SDNC |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | CoroTurn 107 |
| Lead Angle | 27.50 |
| Shank Width (mm) | 16.00 |
| Shank Width (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7559 |
| Insert Compatibility | DCMT 11 T3 08 |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 8.50 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3346 |
| Head Length (mm) | 21.00 |
| Head Length (Decimal Inch) | 0.8268 |
| Toolholder Material | Steel |
