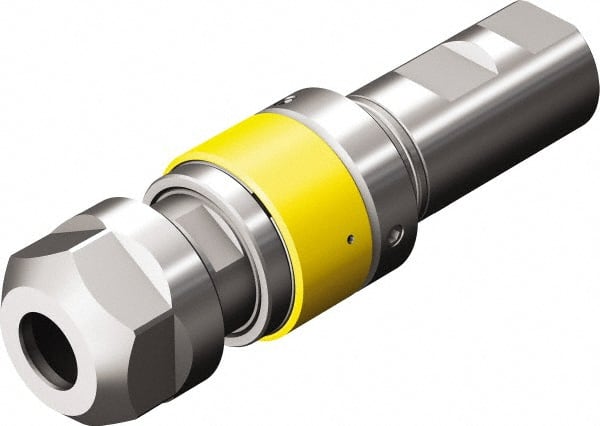

Sandvik Coromant - 1" Weldon Shank Diam Tapping Chuck/Holder - M8 to M20 Tap Capacity, 5.4685" Projection, Size 1 Adapter, Through Coolant
Item #: 49349103
Brand: Sandvik Coromant
Model #: 6412696
Exact Tooling IR#: 04
Features and Benefits
Weldon shanks are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Shank Type | Weldon Shank |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Minimum Tap Capacity (mm) | M8 |
| Maximum Tap Capacity (mm) | M20 |
| Projection (Decimal Inch) | 5.4685 |
| Quick Change | No |
| Hole Diameter (Decimal Inch) | 1.0158 |
| Adapter Size | 1 |
| Holder Series | CoroChuck 970 |
| Nose Diameter (Decimal Inch) | 1.6417 |
| Overall Length (Decimal Inch) | 5.4685 |
| Through Coolant | Yes |
