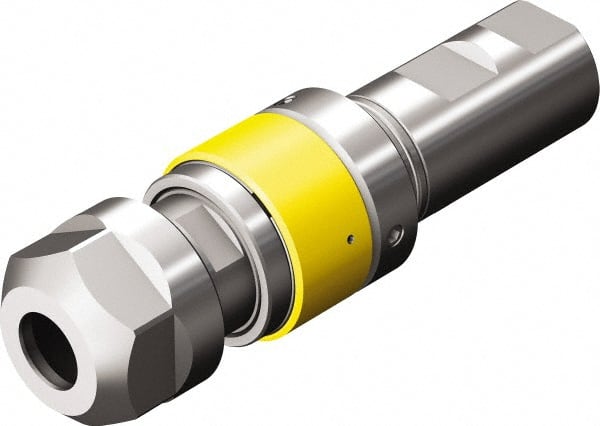

Sandvik Coromant - 25mm Weldon Shank Diam Tapping Chuck/Holder - M16 to M30 Tap Capacity, 167.9mm Projection, Through Coolant
Item #: 49351323
Brand: Sandvik Coromant
Model #: 6412693
Exact Tooling IR#: 04
Features and Benefits
Weldon shanks are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Shank Type | Weldon Shank |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Minimum Tap Capacity (mm) | M16 |
| Maximum Tap Capacity (mm) | M30 |
| Projection (Decimal Inch) | 6.6102 |
| Projection (mm) | 167.90 |
| Quick Change | No |
| Hole Diameter (mm) | 40.80 |
| Hole Diameter (Decimal Inch) | 1.6063 |
| Collet System | ER Tap |
| Collet Series | ER40 |
| Holder Series | CoroChuck 970 |
| Nose Diameter (mm) | 63.00 |
| Nose Diameter (Decimal Inch) | 2.4803 |
| Overall Length (mm) | 167.90 |
| Overall Length (Decimal Inch) | 6.6102 |
| Through Coolant | Yes |
