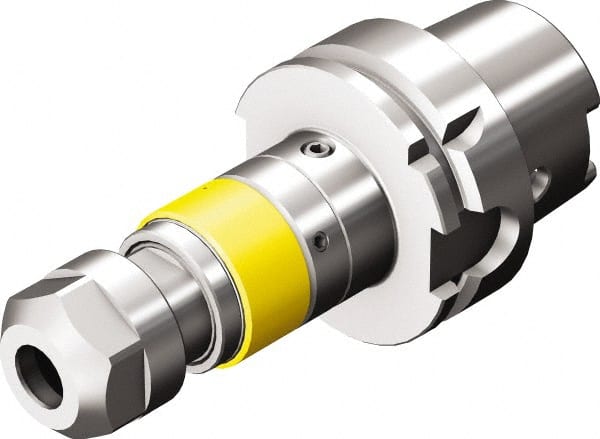

Sandvik Coromant - HSK63A Taper Shank Tapping Chuck/Holder - M16 to M30 Tap Capacity, 160mm Projection, Through Coolant
Item #: 49351471
Brand: Sandvik Coromant
Model #: 6494943
Exact Tooling IR#: 04
Features and Benefits
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | HSK63A |
| Minimum Tap Capacity (mm) | M16 |
| Maximum Tap Capacity (mm) | M30 |
| Projection (Decimal Inch) | 6.2992 |
| Projection (mm) | 160.00 |
| Quick Change | No |
| Hole Diameter (mm) | 41.00 |
| Hole Diameter (Decimal Inch) | 1.6142 |
| Collet System | ER Tap |
| Collet Series | ER40 |
| Holder Series | CoroChuck 970 |
| Nose Diameter (mm) | 63.00 |
| Nose Diameter (Decimal Inch) | 2.4803 |
| Overall Length (mm) | 192.00 |
| Overall Length (Decimal Inch) | 7.5591 |
| Through Coolant | Yes |
