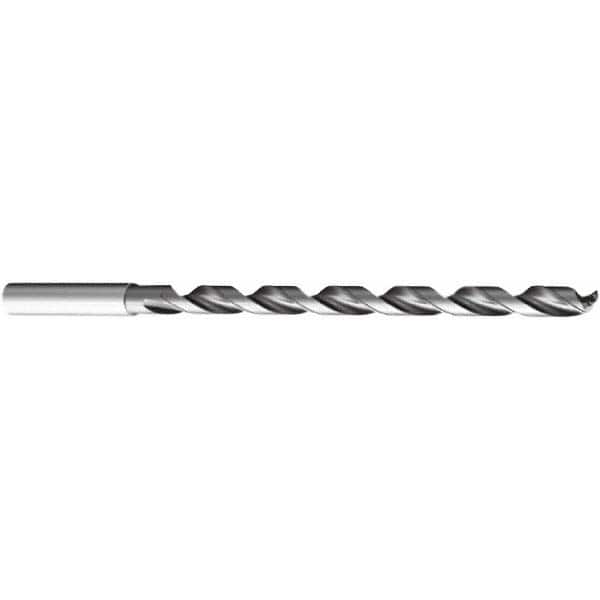

Extra Length Drill Bit: 0.3425″ Dia, 140 °, Solid Carbide TiAlN Finish, 5.748″ Flute Length, 7.5591″ OAL, Spiral Flute, Straight-Cylindrical Shank, Series CoroDrill 861
Item #: 49367832
Brand: Sandvik Coromant
Model #: 6151091
Product Specifications
| Drill Bit Size (mm) | 8.70 |
| Tool Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Drill Point Angle | 140 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | CoroDrill 861 |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | m7 mm |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.3425 |
| Drill Point Length (Decimal Inch) | 0.0550 |
| Overall Length (Decimal Inch) | 7.5591 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Shank Diameter (mm) | 10.00 |
| Shank Length (Decimal Inch) | 1.5748 |
| Flute Length (Decimal Inch) | 5.7480 |
| Flute By Diameter Ratio | 12xD |
| Maximum Drilling Depth (Decimal Inch) | 4.0945 |
| Specification Designation | ISO; ANSI |
