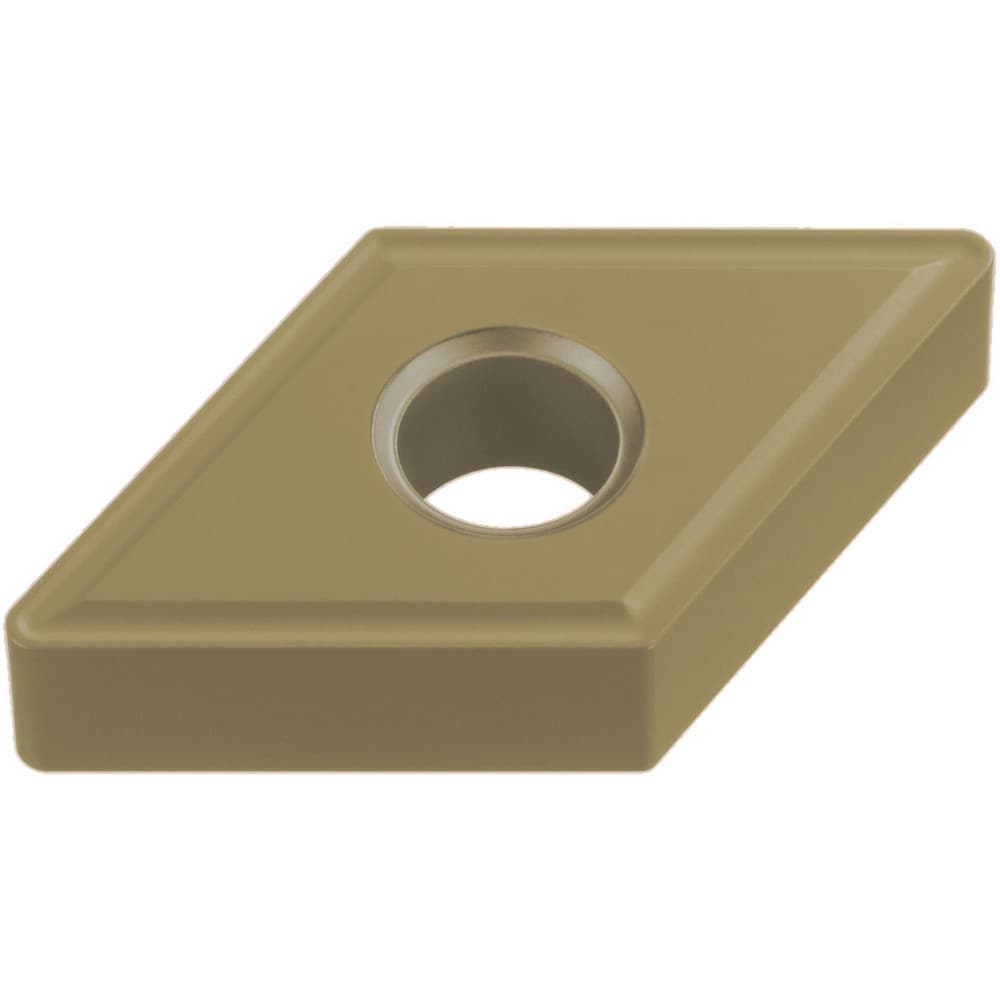

Turning Insert: DNMG432GM MC7025, Carbide
Item #: 02443976
Brand: Mitsubishi
Model #: 643541
Product Specifications
| ANSI Insert Code | DNMG432 |
| ISO Insert Code | DNMG150408 |
| Relief Angle | 0 |
| Insert Style | DNMG |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Included Angle | 55 |
| Manufacturer Grade | MC7025 |
| Coating/Finish | CVD |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | D |
| Clearance Code | N |
| Tolerance Code | M |
| Primary Workpiece Material Code | M |
| Chip Breaker | GM |
| ANSI Size Code | 432 |
| ISO Size Code | 150408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 4 |
