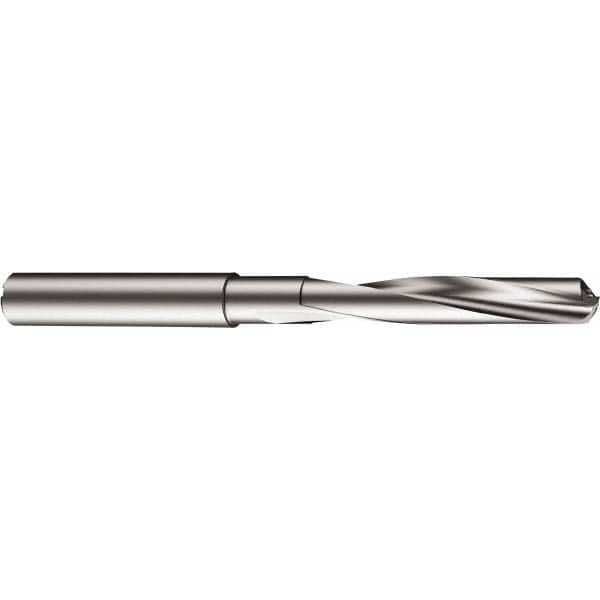

Screw Machine Length Drill Bit: 0.5118″ Dia, 130 °, Solid Carbide Bright/Uncoated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series CoroDrill 860
Item #: 49368509
Brand: Sandvik Coromant
Model #: 6253818
Product Specifications
| Drill Bit Size (mm) | 13.00 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Drill Point Angle | 130 |
| Spiral Type | Slow |
| Flute Type | Spiral |
| Point Type | Split |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Drill Bit Size (Decimal Inch) | 0.5118 |
| Overall Length (Decimal Inch) | 4.2126 |
| Shank Diameter (mm) | 14.00 |
| Series | CoroDrill 860 |
| Drill Length Type | Regular |
| Maximum Drilling Depth (Decimal Inch) | 1.6024 |
| Shank Length (Decimal Inch) | 1.7717 |
| Drill Point Length (Decimal Inch) | 0.0670 |
| Flute By Diameter Ratio | 3.13077xD |
| Flute Length (Decimal Inch) | 2.3622 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.5000 to 0.6000 |
| Drill Bit Size Range (mm) | 11.00 to 13.50 |
| Specification Designation | ISO; DIN; ANSI |
