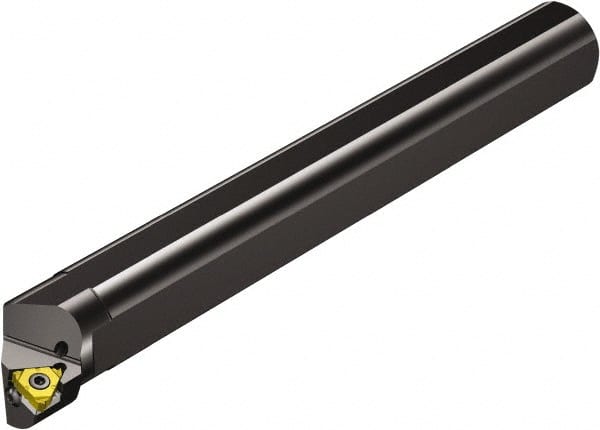

Sandvik Coromant - Internal Thread, Left Hand Cut, 1-1/2" Shank Width x 1.378" Shank Height Indexable Threading Toolholder - 15" OAL, Various Insert Compatibility, 266.LL Toolholder, Series CoroThread 266
Item #: 49378573
Brand: Sandvik Coromant
Model #: 5757734
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (Decimal Inch) | 1.5000 |
| Shank Width/Diameter (Inch) | 1-1/2 |
| Shank Height (Decimal Inch) | 1.3780 |
| Overall Length (Decimal Inch) | 15.0000 |
| Overall Length (Inch) | 15 |
| Insert Compatibility | 266LL-22AC01F040E; 266LL-22AC01F050E; 266LL-22AC01F060E; 266LL-22MM01A350M; 266LL-22MM01A400M; 266LL-22MM01A450M; 266LL-22MM01A500M; 266LL-22MM01A550M; 266LL-22MM01A600M; 266LL-22RN01A040M; 266LL-22SA01F040E; 266LL-22SA01F050E; 266LL-22SA01F060E; 266LL-22 |
| Series | CoroThread 266 |
| Toolholder Style | 266.LL |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading |
| Insert Holding Method | Screw |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Neck Diameter (Decimal Inch) | 1.5000 |
| Head Length (Decimal Inch) | 2.0118 |
| Shank Length (Decimal Inch) | 12.9882 |
| Maximum Bore Depth (Decimal Inch) | 4.5000 |
| Minimum Bore Diameter (Decimal Inch) | 1.9700 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Pitch Range | 8 - 4 |
| Toolholder Material | Steel |
