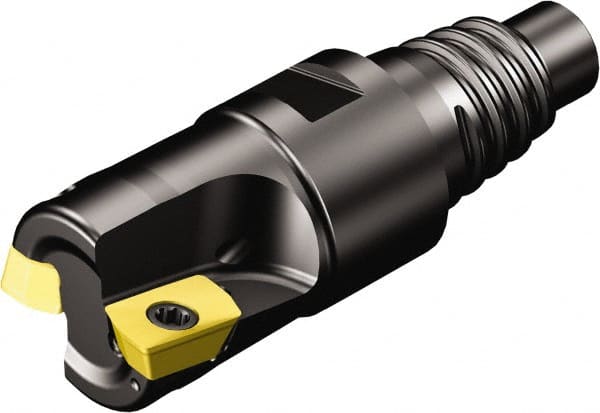

Sandvik Coromant - 7 Inserts, 1" Cut Diam, 0.9646" Arbor Diam, 0.2283" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 63/64" High, 390R-07.. Insert Compatibility, Through Coolant, Series CoroMill 390
Item #: 49408370
Brand: Sandvik Coromant
Model #: 6851131
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Arbor Hole Diameter (Decimal Inch) | 0.9646 |
| Lead Angle | 90 |
| Overall Height (Decimal Inch) | 0.9843 |
| Insert Compatibility | 390R-07.. |
| Series | CoroMill 390 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.2283 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | RA390 |
| Maximum Body Diameter (Decimal Inch) | 0.9606 |
| Maximum RPM | 28000 |
| Cutting Edge Length (Decimal Inch) | 0.2283 |
| ISO Number | RA390025EH2507H |
| Complete Insert Compatibility | 390R-07.. |
| Toolholder Material | Steel |
