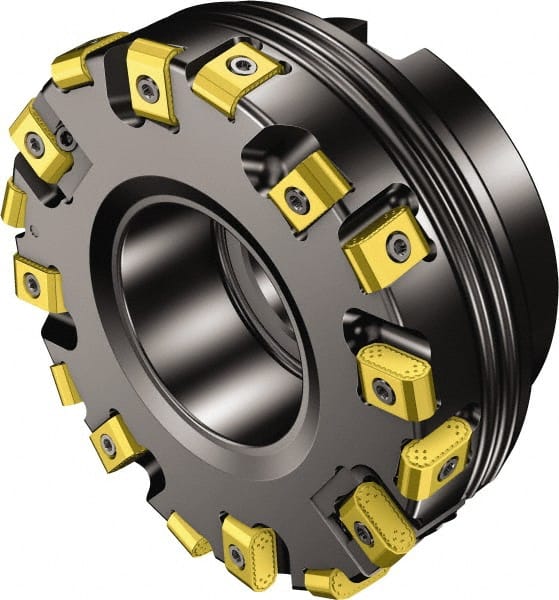

Sandvik Coromant - 6" Cut Diam, 1-1/2" Arbor Hole, 0.0354" Max Depth of Cut, 25° Indexable Chamfer & Angle Face Mill - 18 Inserts, 425N-1707 Insert, Right Hand Cut, Series CoroMill 425
Item #: 49408701
Brand: Sandvik Coromant
Model #: 6717898
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 6 |
| Cutting Diameter (Decimal Inch) | 6.0000 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 25 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | 425N-1707 |
| Series | CoroMill 425 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.0354 |
| Number of Cutter Inserts | 18 |
| Insert Holding Method | Screw |
| Cutter Style | A425..Rxx |
| Hub Diameter (Decimal Inch) | 5.8189 |
| Keyway Width (Decimal Inch) | 0.6331 |
| Maximum Body Diameter (Decimal Inch) | 6.0551 |
| Maximum RPM | 3130 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | 425N-1707 |
| Toolholder Material | Steel |
