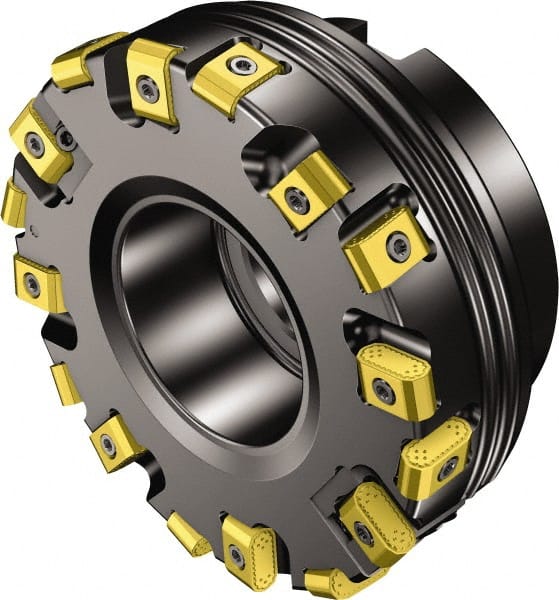

Sandvik Coromant - 8" Cut Diam, 2-1/2" Arbor Hole, 0.0354" Max Depth of Cut, 25° Indexable Chamfer & Angle Face Mill - 24 Inserts, 425N-1707 Insert, Right Hand Cut, Series CoroMill 425
Item #: 49408925
Brand: Sandvik Coromant
Model #: 6717899
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 8 |
| Cutting Diameter (Decimal Inch) | 8.0000 |
| Arbor Hole Diameter (Inch) | 2-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Lead Angle | 25 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | 425N-1707 |
| Series | CoroMill 425 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.0354 |
| Number of Cutter Inserts | 24 |
| Insert Holding Method | Screw |
| Cutter Style | A425..Rxx |
| Hub Diameter (Decimal Inch) | 6.4685 |
| Keyway Width (Decimal Inch) | 1.0118 |
| Maximum Body Diameter (Decimal Inch) | 8.0433 |
| Maximum RPM | 2350 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | 425N-1707 |
| Toolholder Material | Steel |
