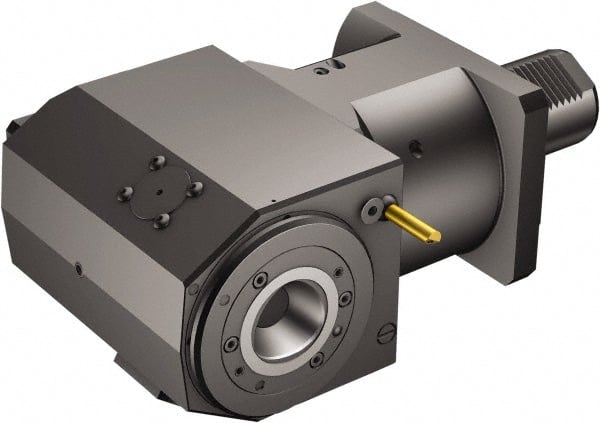

Sandvik Coromant - Neutral Cut, C5 Modular Connection, Adapter/Mount Lathe Modular Clamping Unit - 1/4" Square Shank Diam, 8.228" OAL, Through Coolant
Item #: 49415193
Brand: Sandvik Coromant
Model #: 6144280
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Clamping Unit Type | Adapter/Mount |
| Connection Size | C5 |
| Cutting Direction | Neutral |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Through Coolant | Yes |
| Head Height (mm) | 104.00 |
| Head Height (Decimal Inch) | 4.0945 |
| Overall Length (mm) | 209.00 |
| Overall Length (Decimal Inch) | 8.2283 |
| Shank Length (mm) | 75.00 |
| Shank Length (Decimal Inch) | 2.9528 |
