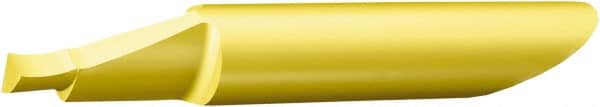

Sandvik Coromant - 4mm Groove Width, 17mm Min Hole Diam, 25mm Max Hole Depth, Face Grooving Tool - 25mm Projection, 65.91mm OAL, 0.2mm Radius, Solid Carbide, TiAlN/TiN Finish
Item #: 49417660
Brand: Sandvik Coromant
Model #: 6365884
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Grooving Tool Type | Face |
| Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Shank Diameter (mm) | 10.00 |
| Groove Width (Decimal Inch) | 0.1575 |
| Groove Width (mm) | 4.00 |
| Projection (Decimal Inch) | 0.9843 |
| Projection (mm) | 25.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.6693 |
| Minimum Hole Diameter (mm) | 17.00 |
| Maximum Hole Depth (Decimal Inch) | 0.9843 |
| Maximum Hole Depth (mm) | 25.00 |
| Overall Length (Decimal Inch) | 2.5949 |
| Overall Length (mm) | 65.91 |
| Finish/Coating | TiAlN/TiN |
| Radius (Decimal Inch) | 0.0079 |
| Radius (mm) | 0.20 |
| Manufacturer Grade | 1025 |
