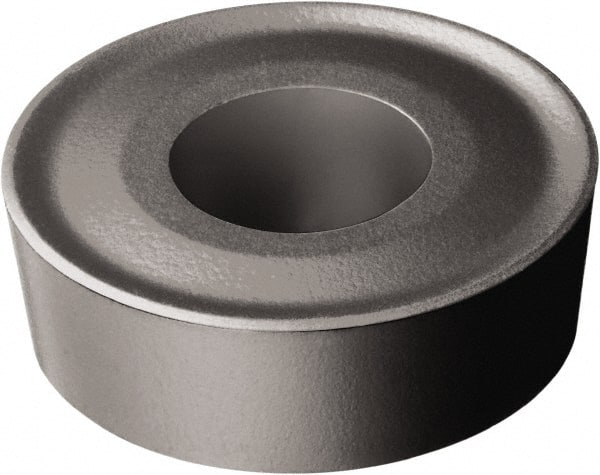

Sandvik Coromant - RCMX100300 RCMX Grade H13A Carbide Turning Insert - Uncoated, Round, 10mm Inscr Circle, 1/8" Thick
Item #: 49418668
Brand: Sandvik Coromant
Model #: 5740687
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMX |
| Insert Size | 100300 |
| Material | Carbide |
| Inscribed Circle (mm) | 10.00 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1252 |
| Thickness (mm) | 3.18 |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Chip Breaker | RCMX |
| Hole Diameter (mm) | 3.60 |
| Hole Diameter (Decimal Inch) | 0.1417 |
| ISO Number | RCMX100300H13A |
| Relief Angle | 7 |
| Manufacturers Catalog Number | 5740687 |
| Primary Workpiece Material | K; N; S |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Insert Holding Method | Screw |
| Shape | Round |
