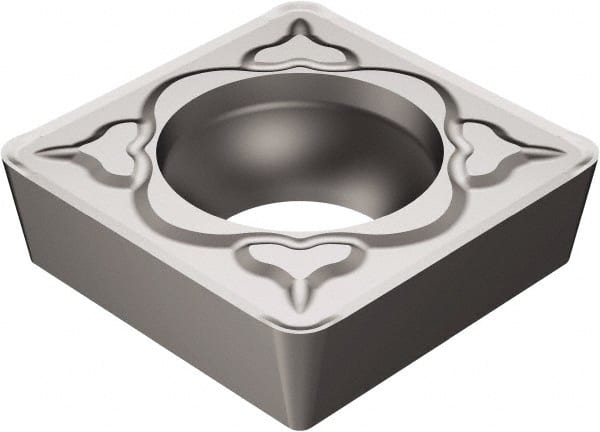

Sandvik Coromant - SCMT32.52 KM Grade H13A Carbide Turning Insert - Uncoated, 90° Square, 3/8" Inscr Circle, 5/32" Thick, 1/32" Corner Radius
Item #: 49431885
Brand: Sandvik Coromant
Model #: 5749018
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCMT |
| Insert Size | 32.52 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Thickness (mm) | 3.97 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Chip Breaker | KM |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | SCMT09T308KMH13A |
| Relief Angle | 7 |
| Manufacturers Catalog Number | 5749018 |
| Primary Workpiece Material | K; N; S |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 8.73 |
| Maximum Depth of Cut (Decimal Inch) | 0.3437 |
| Insert Holding Method | Screw |
| Shape | Square |
