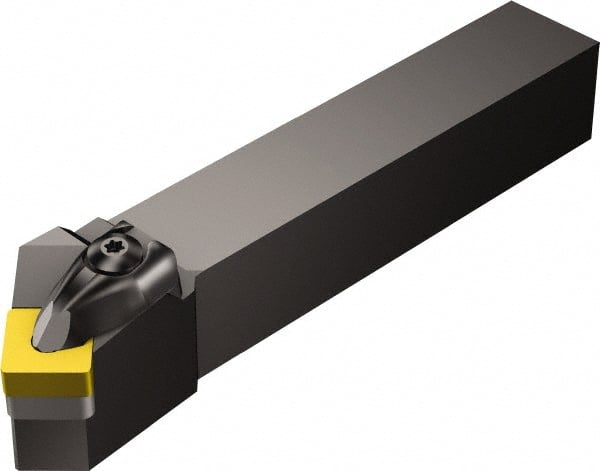

Sandvik Coromant - DSSN, Left Hand Cut, 45° Lead Angle, 32mm Shank Height x 32mm Shank Width, Negative Rake Indexable Turning Toolholder - 180.24mm OAL, SNMG 15 06 12 Insert Compatibility, Series T-Max P
Item #: 49439722
Brand: Sandvik Coromant
Model #: 5733975
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DSSN |
| Rake | Negative |
| Rake Angle | -8 |
| Series | T-Max P |
| Lead Angle | 45 |
| Shank Width (mm) | 32.00 |
| Shank Width (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 180.24 |
| Overall Length (Decimal Inch) | 7.0961 |
| Insert Compatibility | SNMG 15 06 12 |
| Multi-Use Tool | No |
| Insert Holding Method | Wedge |
| Head Length (mm) | 33.10 |
| Head Length (Decimal Inch) | 1.3032 |
| Toolholder Material | Steel |
