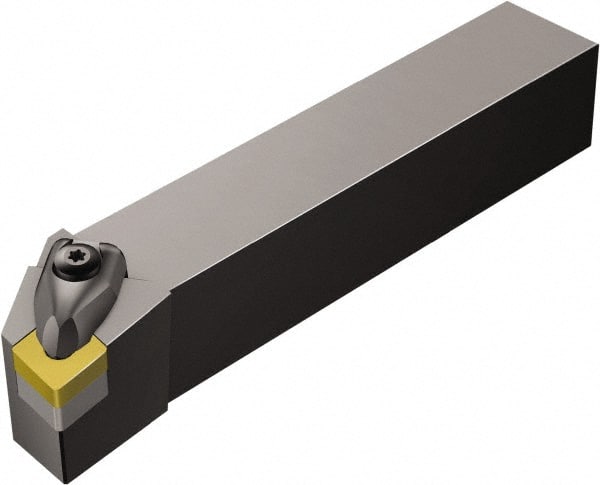

Sandvik Coromant - DCLN, Right Hand Cut, -5° Lead Angle, 40mm Shank Height x 40mm Shank Width, Negative Rake Indexable Turning Toolholder - 250mm OAL, CNMG 19 06 12 Insert Compatibility, Series T-Max P
Item #: 49439847
Brand: Sandvik Coromant
Model #: 5730664
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | DCLN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | T-Max P |
| Lead Angle | -5 |
| Shank Width (mm) | 40.00 |
| Shank Width (Decimal Inch) | 1.5748 |
| Shank Height (mm) | 40.00 |
| Shank Height (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Insert Compatibility | CNMG 19 06 12 |
| Multi-Use Tool | No |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 50.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.9685 |
| Head Length (mm) | 43.40 |
| Head Length (Decimal Inch) | 1.7087 |
| Toolholder Material | Steel |
