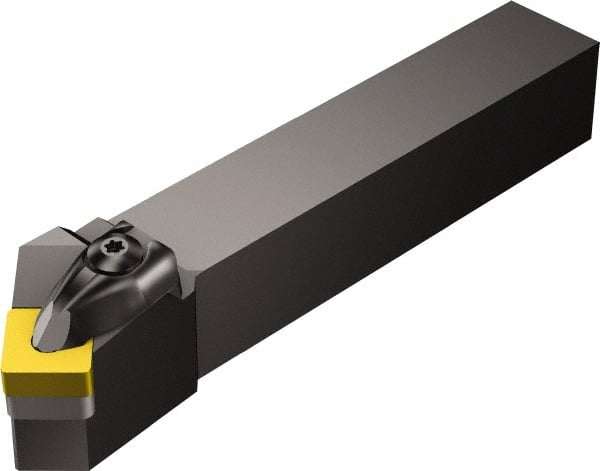

Sandvik Coromant - DSSN, Left Hand Cut, 45° Lead Angle, 3/4" Shank Height x 3/4" Shank Width, Negative Rake Indexable Turning Toolholder - 4.8276" OAL, SNMG 12 04 08 Insert Compatibility, Series T-Max P
Item #: 49440001
Brand: Sandvik Coromant
Model #: 5732072
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DSSN |
| Rake | Negative |
| Rake Angle | -8 |
| Series | T-Max P |
| Lead Angle | 45 |
| Shank Width (Inch) | 3/4 |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 4.8276 |
| Insert Compatibility | SNMG 12 04 08 |
| Multi-Use Tool | No |
| Insert Holding Method | Wedge |
| Head Length (Decimal Inch) | 1.1339 |
| Toolholder Material | Steel |
