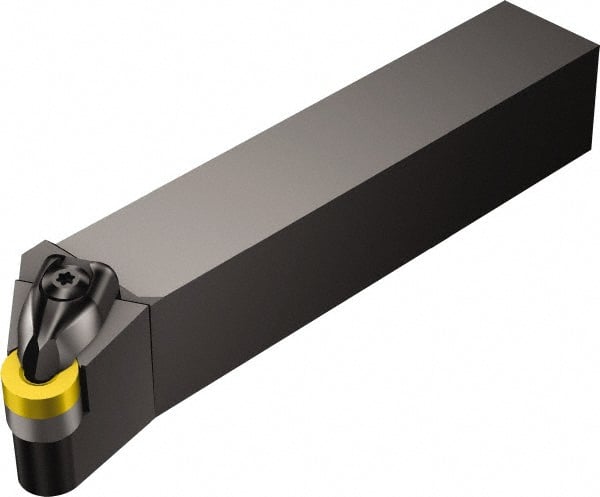

Sandvik Coromant - DRSN, Right Hand Cut, 3/4" Shank Height x 3/4" Shank Width, Negative Rake Indexable Turning Toolholder - 4-1/2" OAL, RNMG 09 03 00 Insert Compatibility, Series T-Max P
Item #: 49441108
Brand: Sandvik Coromant
Model #: 5734524
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | DRSN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | T-Max P |
| Shank Width (Inch) | 3/4 |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Overall Length (Inch) | 4-1/2 |
| Overall Length (Decimal Inch) | 4.5000 |
| Insert Compatibility | RNMG 09 03 00 |
| Multi-Use Tool | No |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Head Length (Decimal Inch) | 0.9843 |
| Toolholder Material | Steel |
