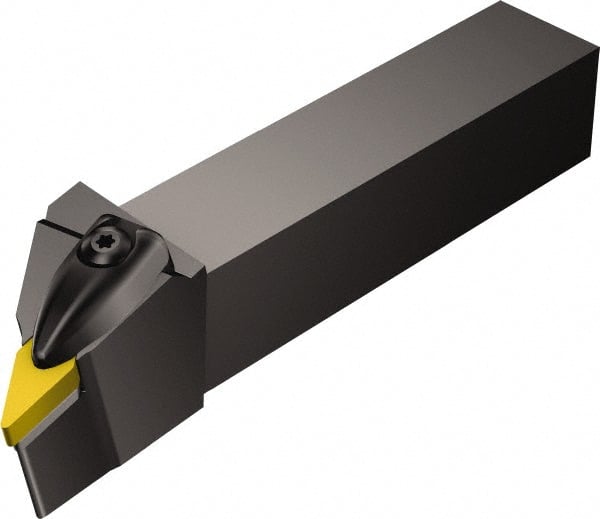

Sandvik Coromant - DVJN, Left Hand Cut, -3° Lead Angle, 1-1/2" Shank Height x 1-1/2" Shank Width, Negative Rake Indexable Turning Toolholder - 6" OAL, VNMG 16 04 08 Insert Compatibility, Series T-Max P
Item #: 49441447
Brand: Sandvik Coromant
Model #: 5731482
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DVJN |
| Rake | Negative |
| Rake Angle | -4 |
| Series | T-Max P |
| Lead Angle | -3 |
| Shank Width (Inch) | 1-1/2 |
| Shank Width (Decimal Inch) | 1.5000 |
| Shank Height (Inch) | 1-1/2 |
| Shank Height (Decimal Inch) | 1.5000 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | VNMG 16 04 08 |
| Multi-Use Tool | No |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (Inch) | 2 |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.0000 |
| Head Length (Decimal Inch) | 1.8300 |
| Toolholder Material | Steel |
